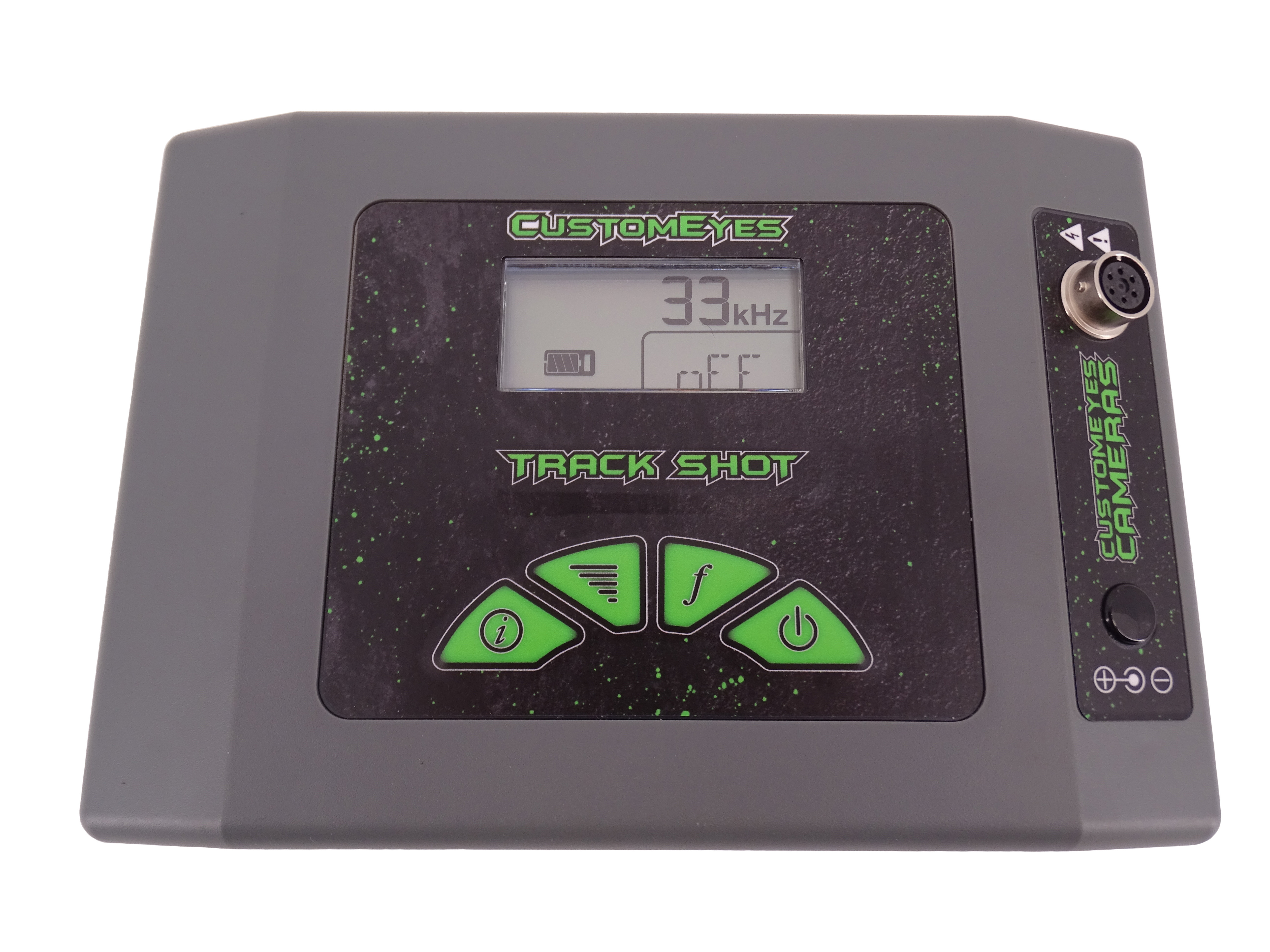

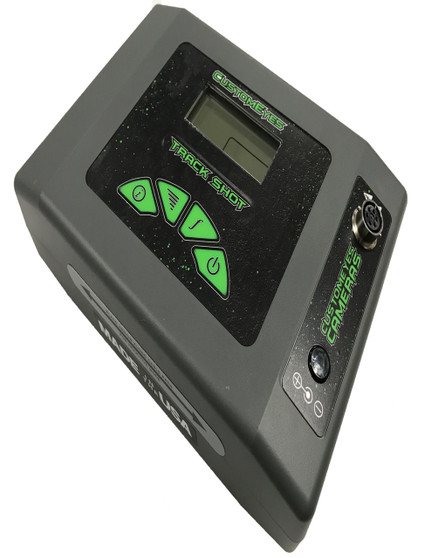

CustomEyes Track Shot Pipe Transmitter

$899.00
(0) Write a Review

Product Description

CustomEyes Cameras Track Shot



Includes:

Direct connection lead clips, each with 15ft of reach

Ground rod for near and independent ground

Protective Carrying Case

Manual

(8) C Batteries



TRANSMITTER SPECIFICATIONS Available Operating Frequencies..............

476.527 kHz*, 200.330 kHz*, 131 Khz, 82.315 kHz, 65.536 kHz, 32.768 kHz, 8.192 kHz, 4.010 kHz, 1.010 kHz, 815 Hz, 797 Hz, 640 Hz & 512 Hz (“* ” where permitted by law)

Indicators ............................................................

AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to receiver.

Load Matching ...................................................

Automatic from 5 ohms to 25,000 :

Output Power .....................................................

3 power settings Low & Medium Frequency Range: 0.2w to 3w High Frequencies (above 44kHz) : 0.2 to 1w

Power Source .....................................................

 Non-Rechargeable: 8 “C” cell batteries

Battery Life .........................................................

Continuous: 8-15 hours (dependant on load, frequency, power setting)

Operating Temperature..................................

-4° F to 133° F (-20° C to 55° C)

Ingress Protection Rating .............................

IP65

Dimensions ..........................................................

8.5” x 5.8” x 2.5” (21 cm x 15 cm x 6 cm)

Weight ....................................................................

Rechargeable: 2.2 lbs (1 kg); C-cell: 2.2 lbs (1 kg)

WARRANTY ........................................................

48 Month (4 Years) Warranty when registered at http://www. rycominstruments.com/extended.html within 1 month of date of purchase. Warranty from date of delivery against defects in material and workmanship (EXCEPT BATTERIES) on all instruments. This warranty is void if, after having received the instrument in good condition, it is subjected to abuse, unauthorized alteration or casual repair. We will repair or replace products that prove to be defective during warranty period. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. THE WARRANTY DESCRIBED IN THIS PARAGRAPH SHALL BE IN LIEU OF ANY OTHER WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WE ARE NOT LIABLE FOR CONSEQUENTIAL DAMAGES.

Country of Origin ..............................................

United States of America
